Kawasaki Triple's Color Data

Kawasaki 500 H1-B and H1-C 1972

Last update: 2009-01-18

Model Data

MODEL NAME H1B, H1C
YEAR 1972
DISPLACEMENT 500 cc
REMARK Battery ignition system, CDI (H1-C US Model)
ENGINE No. KAE-54101~
FRAME No. KAF-48763~
COLOR PEARL CANDY ORANGE
PEARL CANDY RED

Notes: Major change, color, marking. Battery ignition system replaced the CDI. Front disk brake and steering oil damper adopted. Seat, electric parts, speedometer and tachometer.
H1C model has CDI (North America only).

Color

Pearl Candy tone Orange

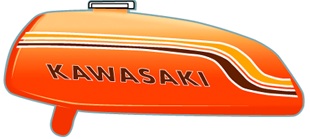

Pearl Candy tone Orange Fuel Tank

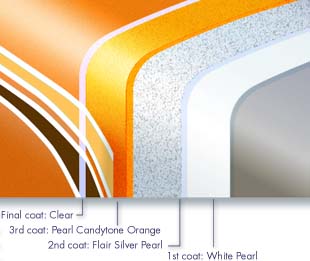

Paint Process
Pearl Candy tone Red

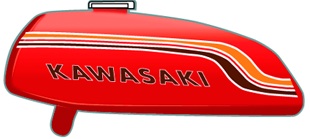

Pearl Candy tone Red Fuel Tank
Paint Process
